Cisco vPC (Virtual Port Channel)
Cisco vPC (Virtual Port Channel) is a technology that allows devices to connect to two physical switches (Nexus) while appearing as a single logical connection.
3/20/20261 min read
What is Cisco vPC?
Cisco vPC (Virtual Port Channel) is a technology that allows devices to connect to two physical switches (Nexus) while appearing as a single logical connection.
This provides:
High availability
Load balancing
Redundancy without spanning-tree blocking
Faster failover
At Motech Support LLC, we specialize in designing, troubleshooting, and stabilizing vPC environments in production networks.
Why vPC is Critical in Data Centers
Modern data centers rely on vPC to:
Eliminate single points of failure
Provide active-active forwarding
Improve bandwidth utilization
Support mission-critical applications
However, misconfiguration or instability in vPC can lead to:
Network outages
MAC flapping
Broadcast storms
Split-brain conditions

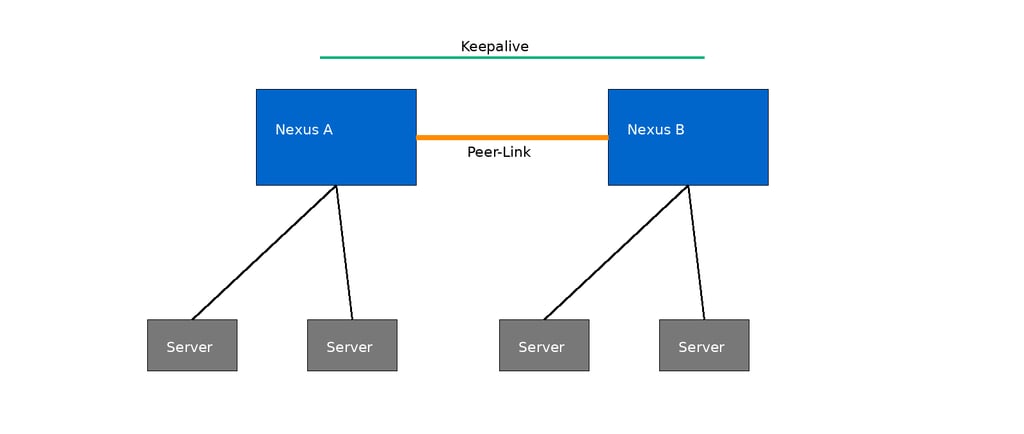

vPC Architecture Overview
A typical vPC design includes:
Two Nexus switches (vPC peers)
Peer-link (synchronization link)
Keepalive link (heartbeat between switches)
vPC member ports (connected to servers or downstream switches)
How vPC Works (Traffic Flow)
The server connects to both Nexus switches
Traffic is forwarded through either switch (active-active)
Peer-link synchronizes the MAC and control-plane state
Keepalive ensures peer health detection
Traffic continues even if one switch fails
Common vPC Issues We Solve
vPC Peer-Link Failure
Causes instability between switches
Risk of traffic disruption
Split-Brain Scenario
Both switches think they are primary
Can lead to loops and outages
MAC Address Flapping
Traffic instability between switches
Often caused by misconfiguration
Consistency Check Failures
Type-1 mismatches bring vPC down
Caused by VLAN, STP, or port differences
Our vPC Troubleshooting Approach
At Motech Support, we approach vPC issues as experienced IT consultants:
1. Validate vPC State
show vpc
show vpc consistency-parameters
2. Check Peer-Link & Keepalive
show interface port-channel <peer-link>
show vpc peer-keepalive
3. Analyze MAC Behavior
show mac address-table move update
4. Review Logs & Events
show logging last 100
5. Stabilize Before Recovery
We focus on:
Containing Layer 2 instability
Preventing loops
Restoring clean forwarding
Recovery vs Hardware Replacement
Many vPC issues are incorrectly assumed to be hardware failures.
As experienced consultants, we focus on:
Identifying configuration or control-plane issues
Recovering systems before replacing hardware
Reducing downtime and cost
White-Label vPC Support for MSPs
We provide white-label consulting services for MSPs:
Emergency escalation support
Behind-the-scenes troubleshooting
Assistance during outages
Design and validation
MSPs use our expertise when:
Internal teams are overloaded
Complex Cisco issues arise
Fast resolution is critical
Where vPC is Used
Enterprise data centers
Cloud environments
Financial systems
Healthcare infrastructure
SaaS platforms
Why Choose Motech Support for vPC Consulting?
Deep expertise in Cisco Nexus
Real production incident experience
Fast response during outages
Consultant-driven recovery approach
MSP partnership model
Get Started
If your organization is experiencing vPC instability or needs expert guidance:
