OSPF (Open Shortest Path First) Consulting
OSPF (Open Shortest Path First) is a link-state routing protocol widely used in enterprise and data center networks. It dynamically calculates the shortest path to destinations using a cost-based algorithm and provides fast convergence and scalability.
3/20/20261 min read
OSPF (Open Shortest Path First) Consulting
Motech Support LLC
What is OSPF?
OSPF (Open Shortest Path First) is a link-state routing protocol widely used in enterprise and data center networks.
It dynamically calculates the shortest path to destinations using a cost-based algorithm and provides fast convergence and scalability.
At Motech Support LLC, we provide expert consulting, design, and troubleshooting for OSPF-based networks.
Why OSPF is Critical for Businesses
OSPF enables:
Fast network convergence during failures
Scalable routing using hierarchical design
Efficient path selection based on cost
High availability for internal networks
Without proper OSPF design, networks may experience:
Routing loops
Slow convergence
High CPU utilization
Unstable connectivity

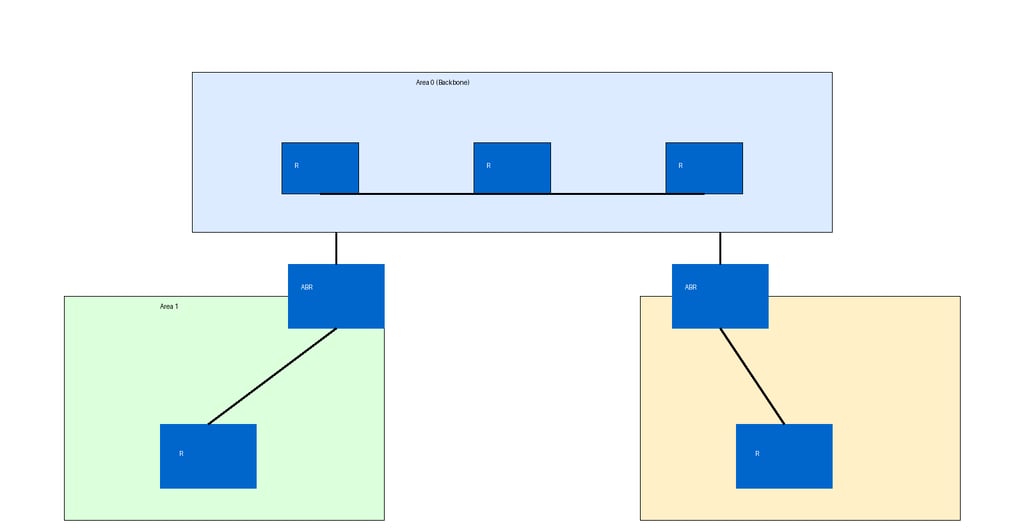

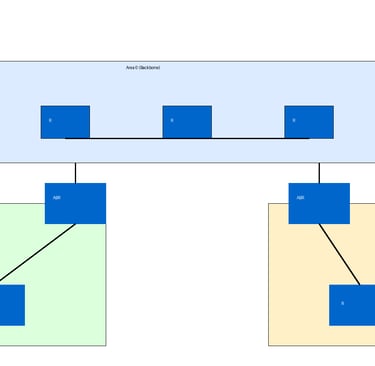

Typical OSPF Topology
A standard enterprise OSPF design includes:
Backbone Area (Area 0)
Multiple areas (Area 1, Area 2, etc.)
Core routers (ABRs)
Internal routers
How OSPF Works
Routers discover neighbors using Hello packets
Form adjacency (Full state)
Exchange LSAs (Link-State Advertisements)
Build LSDB (Link-State Database)
Run SPF algorithm to calculate best path
Install routes into routing table
Key OSPF Concepts
Areas
Area 0 = Backbone
Other areas connect to Area 0
LSA (Link-State Advertisements)
Share topology information
Different types (Type 1, 2, 3, etc.)
Cost
Determines best path
Based on bandwidth
DR / BDR
Designated Router (reduces flooding)
Backup DR for redundancy
ABR / ASBR
ABR = connects areas
ASBR = redistributes external routes
Common OSPF Issues We Solve
OSPF Neighbor Down
Mismatched parameters (hello/dead timers, MTU)
Authentication mismatch
Adjacency Stuck (EXSTART/LOADING)
MTU mismatch
Duplicate router IDs
Route Missing
LSA not propagated
Area misconfiguration
High CPU / Instability
Excessive LSA flooding
Poor area design
Routing Loops
Incorrect summarization
Redistribution issues
Our OSPF Troubleshooting Approach
At Motech Support, we act as experienced IT consultants:
1. Check Neighbor State
show ip ospf neighbor
2. Verify Interface Configuration
show ip ospf interface
3. Inspect LSDB
show ip ospf database
4. Validate Routing Table
show ip route ospf
5. Identify Root Cause
Timer mismatch
Area mismatch
Authentication issues
Network type mismatch
Recovery vs Misconfiguration
Most OSPF issues are configuration-related, not hardware failures.
We focus on:
Stabilizing routing behavior
Fixing design and configuration issues
Avoiding unnecessary hardware replacement
Restoring fast convergence
White-Label OSPF Support for MSPs
We support MSPs with:
OSPF design and optimization
Routing instability troubleshooting
Network scaling and segmentation
Emergency escalation support
MSPs rely on us when:
Complex routing issues arise
Internal teams are overloaded
Fast resolution is required
Where OSPF is Used
Enterprise campus networks
Data centers
WAN environments
Government and healthcare networks
Financial systems
Why Choose Motech Support for OSPF Consulting?
Strong routing expertise (OSPF, BGP, MPLS)
Real production troubleshooting experience
Fast response during outages
Consultant-driven solutions
MSP-friendly model
Get Expert Help
Need help with OSPF design or troubleshooting?
